Helmholtz boundary value problem in a rectangle

\[\begin{split} \mathbb{S}_u \begin{cases} \Omega = [0, L_x] \times [0, L_y] \\ u_{\text{D}}\vert_{\partial\Omega}=0 \\ f(x,y)=\sin(2\pi x/L_x)\sin(2\pi y/L_y) \\ k = 1 \\ \end{cases} \end{split}\]

import numpy as np
from dolfinx.fem import FunctionSpace
from lucifex.fem import Function, Constant
from lucifex.mesh import rectangle_mesh, mesh_boundary
from lucifex.solver import BoundaryConditions, bvp
from lucifex.plt import plot_colormap, save_figure
from lucifex.pde.eigen import helmholtz

Lx = 2.0
Ly = 1.0
Nx = 32
Ny = 32
mesh = rectangle_mesh(Lx, Ly, Nx, Ny)
boundary = mesh_boundary(
        mesh,
        {
            "left": lambda x: x[0],
            "right": lambda x: x[0] - Lx,
            "lower": lambda x: x[1],
            "upper": lambda x: x[1] - Ly,
        },
)
bcs = BoundaryConditions(('dirichlet', boundary.union, 0.0))

fs = FunctionSpace(mesh, ('P', 1))

u = Function(fs, name='u')
k = Constant(mesh, 1.0, name='k')
f = Function(
    fs,
    lambda x: np.sin(2 * np.pi * x[0] / Lx) * np.sin(2 * np.pi * x[1] / Ly),
    name='f',
)
u_solver = bvp(helmholtz, bcs, solution=u)(fs, k, f)
u_solver.solve()

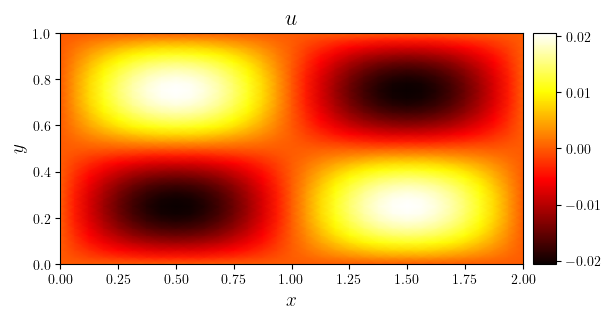

fig, ax = plot_colormap(u, title=f'$u$')
save_figure('u(x,y)', thumbnail=True)(fig)
