Helmholtz boundary value problem in a rectangle#
\[\begin{split}
\mathbb{S}
\begin{cases}
\Omega = [0, L_x] \times [0, L_y] \\
u_{\text{D}}\vert_{\partial\Omega}=0 \\
f(x,y)=\sin(2\pi x/L_x)\sin(2\pi y/L_y) \\
k = 1 \\
\end{cases}
\end{split}\]
import numpy as np
from dolfinx.fem import FunctionSpace
from lucifex.fem import Function, Constant
from lucifex.mesh import rectangle_mesh, mesh_boundary
from lucifex.solver import BoundaryConditions, bvp
from lucifex.viz import plot_colormap, save_figure
from lucifex.pde.eigen import helmholtz
Lx = 2.0
Ly = 1.0
Nx = 32
Ny = 32
mesh = rectangle_mesh(Lx, Ly, Nx, Ny)
boundary = mesh_boundary(
mesh,
{
"left": lambda x: x[0],
"right": lambda x: x[0] - Lx,
"lower": lambda x: x[1],
"upper": lambda x: x[1] - Ly,
},
)
bcs = BoundaryConditions(('dirichlet', boundary.union, 0.0))
fs = FunctionSpace(mesh, ('P', 1))
u = Function(fs, name='u')
k = Constant(mesh, 1.0, name='k')
s = Function(
fs,
lambda x: np.sin(2 * np.pi * x[0] / Lx) * np.sin(2 * np.pi * x[1] / Ly),
name='s',
)
u_solver = bvp(helmholtz, bcs, solution=u)(fs, k, s)
u_solver.solve()

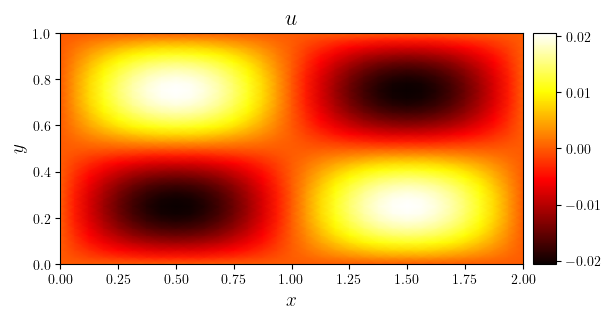

fig, ax = plot_colormap(u, title=f'$u$')
save_figure('u(x,y)', thumbnail=True)(fig)
