Rayleigh-Bénard convection in a porous semicircle

\[\begin{split} \mathbb{S} \begin{cases} \Omega = \{(x, y)~:~0 < x^2 + y^2 < 1^2~,~y>0\} \\ \partial\Omega_{\text{arc}} = \{(x, y)~:~ x^2 + y^2 = 1^2 \} \\ \partial\Omega_{\text{lower}} = \{(x, y)~:~ y=0 \} \\ \textbf{e}_g=-\textbf{e}_y & \text{vertically downward gravity} \\ \phi = 1 & \text{constitutive relations} \\ \mathsf{D} = \mathsf{I} \\ \mathsf{K} = \mathsf{I}\\ \mu = 1 \\ \rho(c) = -c \\ c_0(x,y)=\mathcal{N}(x,y) & \text{initial noise} \\ c_{\text{D}}\vert_{\partial\Omega_{\text{lower}}}=1 & \text{prescribed temperature on lower and arc boundaries} \\ c_{\text{D}}\vert_{\partial\Omega_{\text{arc}}}=0 \\ \psi_{\text{D}}\vert_{\partial\Omega}=0 & \text{no-penetration on entire boundary} \end{cases} \end{split}\]

from lucifex.fdm import AB2, CN
from lucifex.sim import run
from lucifex.utils import triangulation, as_indices
from lucifex.viz import plot_colormap, plot_mesh, save_figure, create_animation, display_animation
from py.C01_darcy_rayleigh_benard import darcy_rayleigh_benard_semicircle

simulation = darcy_rayleigh_benard_semicircle(
    Nradial=32,
    scaling='advective',
    Ra=300.0,
    c_ampl=1e-3,
    c_freq=8,
    D_adv=AB2,
    D_diff=CN,
)

n_stop = 600
dt_init = 1e-6
n_init = 5
run(simulation, n_stop=n_stop, dt_init=dt_init, n_init=n_init)

c = simulation['c']

INFO:root:running build_ext
INFO:root:building 'libffcx_forms_8d15a5e39759208c5c55f8bb39565a36292a7a43' extension
INFO:root:clang -Wno-unused-result -Wsign-compare -Wunreachable-code -DNDEBUG -fwrapv -O2 -Wall -fPIC -O2 -isystem /Users/George/miniconda3/envs/lucifex/include -fPIC -O2 -isystem /Users/George/miniconda3/envs/lucifex/include -I/Users/George/miniconda3/envs/lucifex/lib/python3.10/site-packages/ffcx/codegeneration -I/Users/George/miniconda3/envs/lucifex/include/python3.10 -c libffcx_forms_8d15a5e39759208c5c55f8bb39565a36292a7a43.c -o ./libffcx_forms_8d15a5e39759208c5c55f8bb39565a36292a7a43.o -O2 -g0
INFO:root:clang -bundle -undefined dynamic_lookup -Wl,-rpath,/Users/George/miniconda3/envs/lucifex/lib -L/Users/George/miniconda3/envs/lucifex/lib -Wl,-rpath,/Users/George/miniconda3/envs/lucifex/lib -L/Users/George/miniconda3/envs/lucifex/lib ./libffcx_forms_8d15a5e39759208c5c55f8bb39565a36292a7a43.o -o ./libffcx_forms_8d15a5e39759208c5c55f8bb39565a36292a7a43.cpython-310-darwin.so

time_slice = slice(0, None, 4)
titles = [f'${c.name}(t={t:.3f})$' for t in c.time_series[time_slice]]

anim = create_animation(
    plot_colormap,
    colorbar=False,
)(c.series[time_slice], title=titles)
anim_path = save_figure(f'{c.name}(t)', get_path=True)(anim)

display_animation(anim_path)

mesh = c.mesh
mesh_tri = triangulation(c.function_space.mesh)
x, y = mesh_tri.x, mesh_tri.y

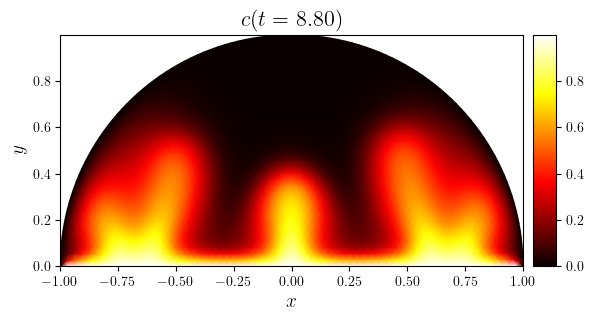

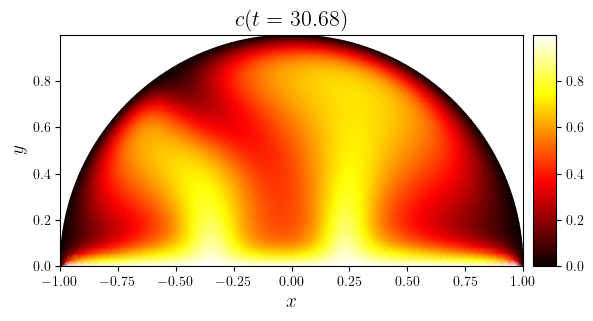

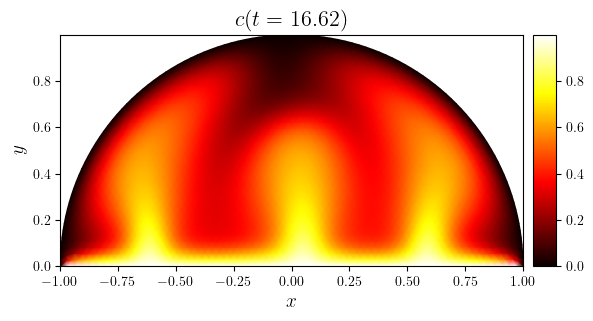

time_indices = as_indices(c.time_series, (0, 0.25, 0.5, -1), fraction=True)
for i in time_indices:
    c_tri = triangulation(c.series[i])
    fig, ax = plot_colormap(
        (mesh_tri, c_tri),
        title=f'${c.name}(t={c.time_series[i]:.2f})$',
        cartesian=False,
    )

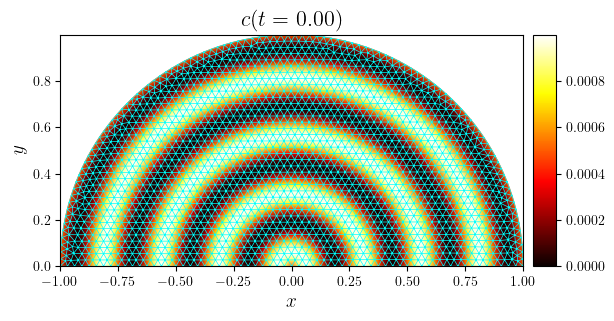

    if i == 0:
        plot_mesh(fig, ax, mesh, color='cyan', linewidth=0.5)
    save_figure(f'{c.name}(t={c.time_series[i]:.2f})', thumbnail=(i == -1))(fig)
